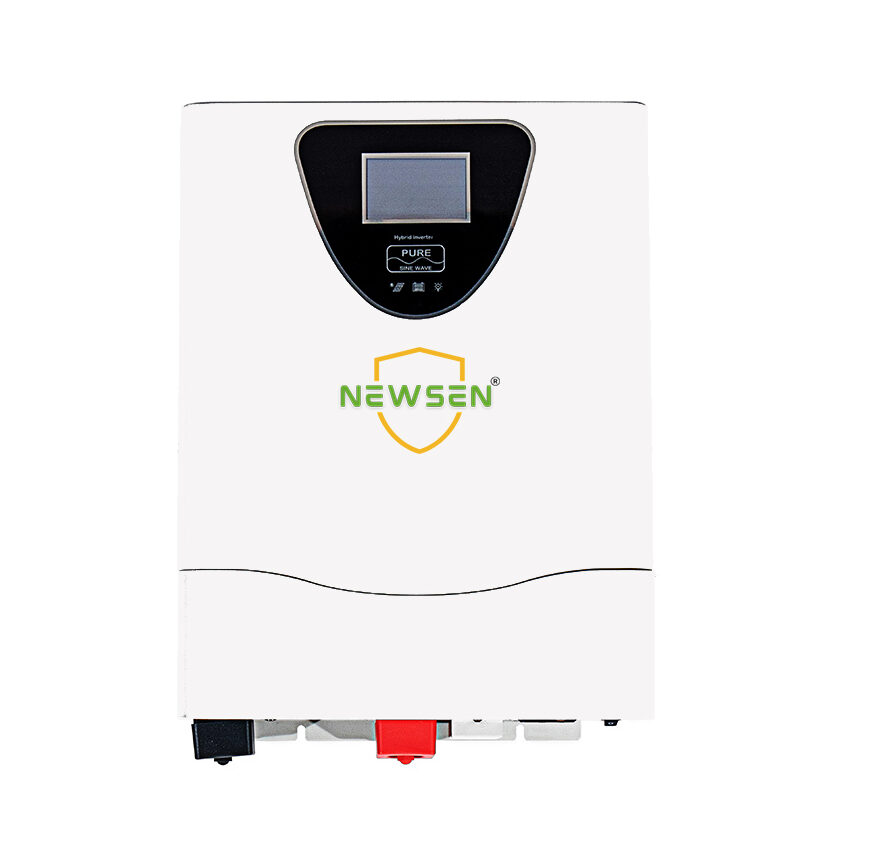

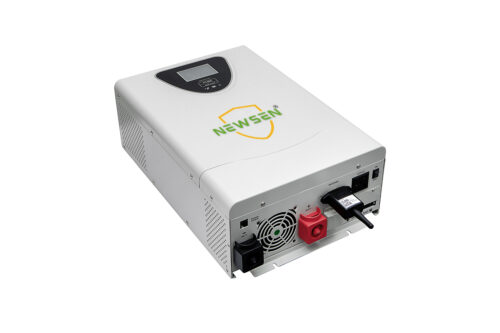

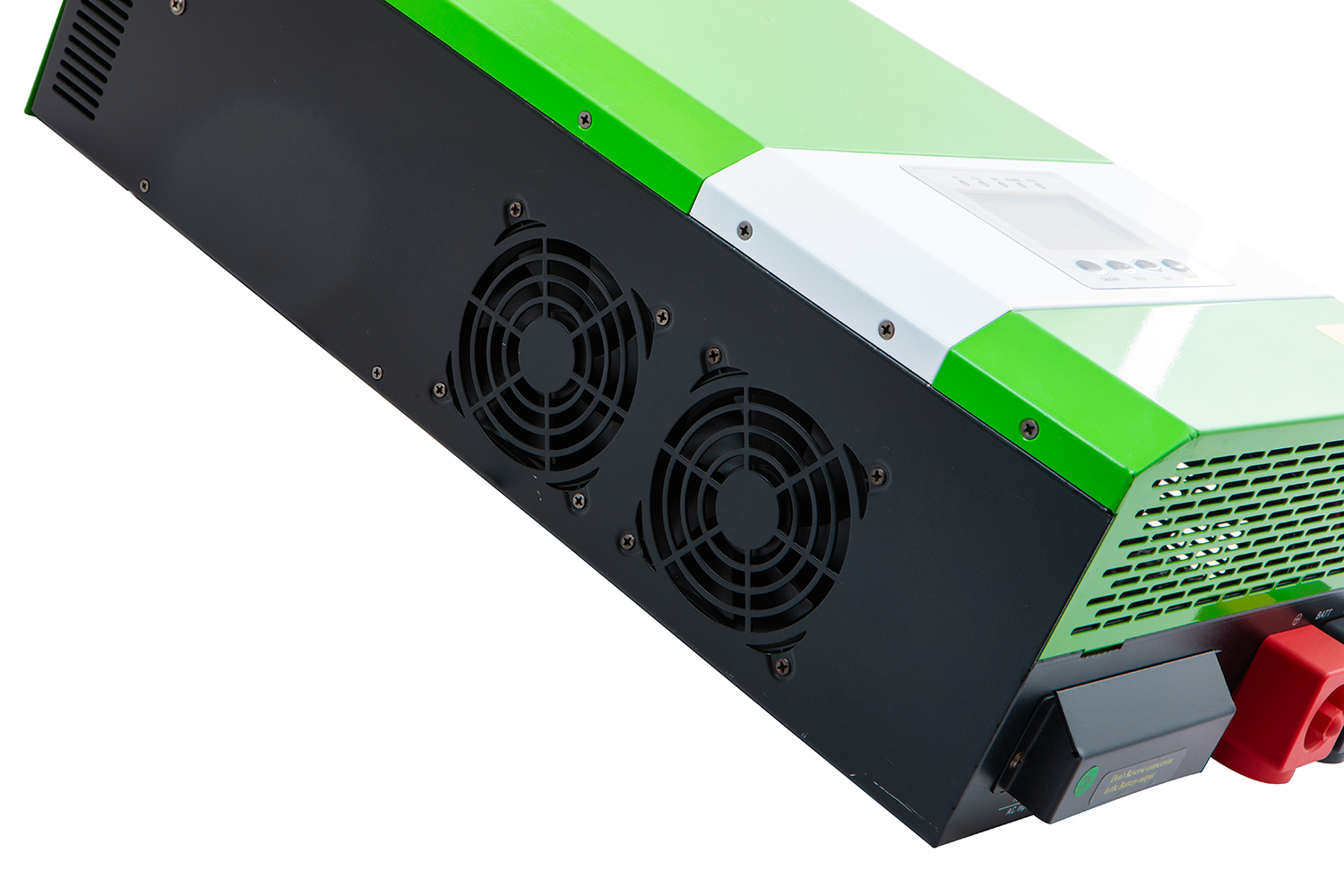

Wall-mounted Hybrid Inverter
Wall-mounted inverter, can be used in household, communication base station, offset mountain area. Stable output, anti-interference, will not short circuit electrical appliances; Pure sine wave AC output, intelligent cpu control technology, high precision STM processing technology safety and stability.
Description
Features of Wall-mounted Hybrid Inverter
Applicable scenario
Wall-mounted inverter, can be used in household, communication base station, offset mountain area.
Quality process
Stable output, anti-interference, will not short circuit electrical appliances; Pure sine wave AC output, intelligent cpu control technology, high precision STM processing technology safety and stability.
Multiple communication

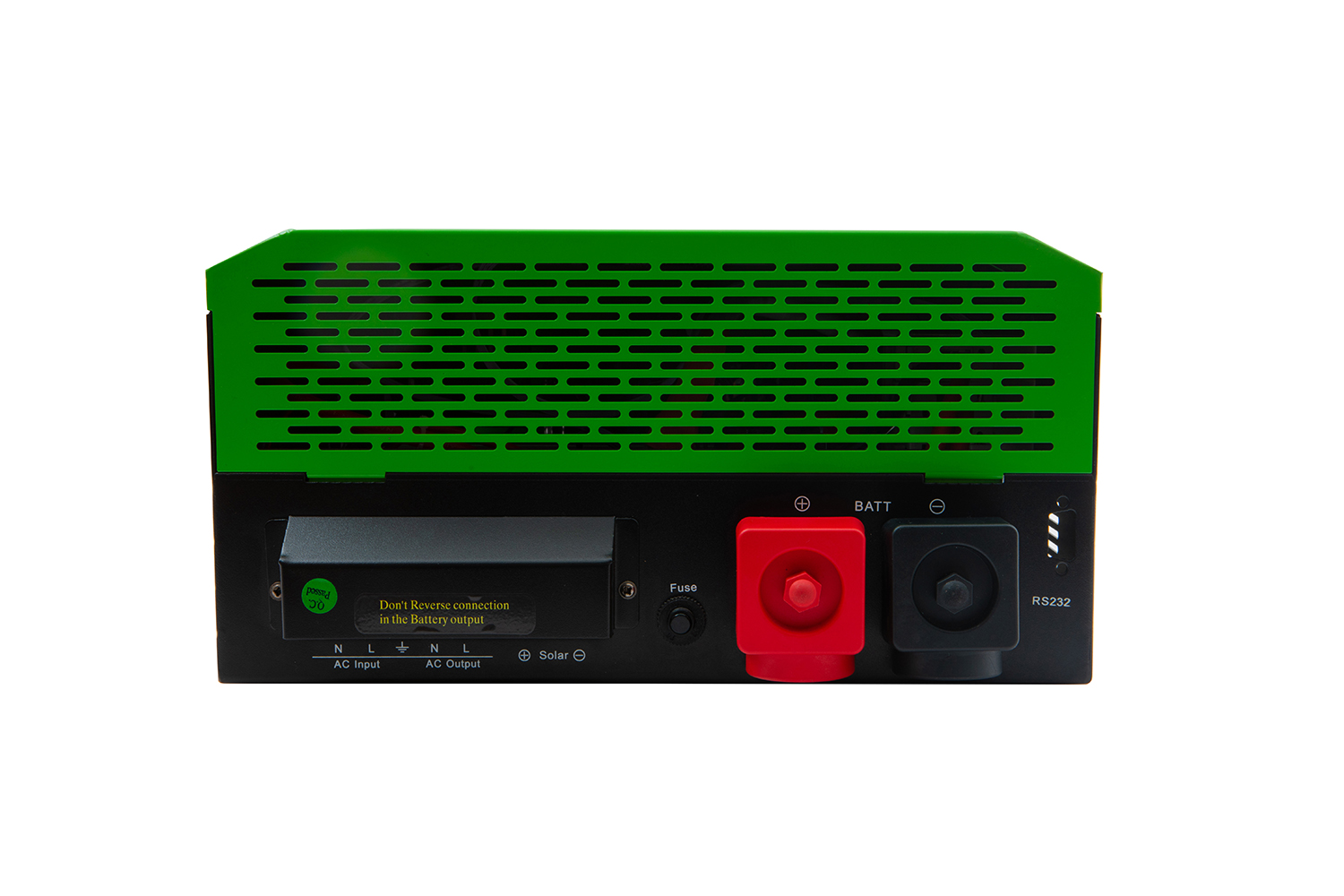

Equipped with RS232, RS485 and CAN communication interface, support for inverter and battery into line real-time communication, mutual monitoring working condition.
LCD Display

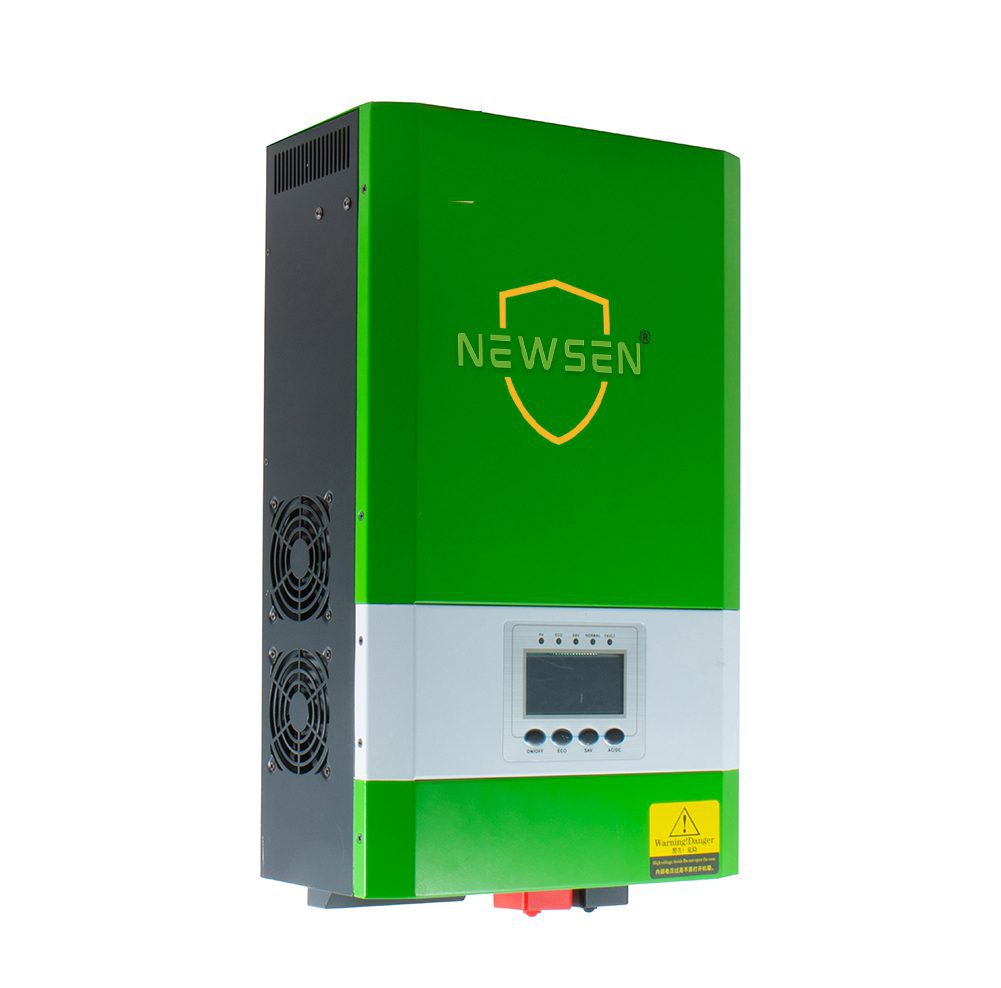

Equipped with LCD screen to observe the working state.
LFP Battery
Made with high-quality lithium iron phosphate batteries, which have a high safety factor, less prone to thermal runaway, and can have a lifespan of up to 10 years with over 3000 cycles.
Multiple charging modes
Supports charging through various methods, including solar power, wind power, diesel, and the electricity grid.
Specifications of Wall-mounted Hybrid Inverter
| Model | 1KW | 2KW | 3KW | 4KW | 5KW | 6KW |
| Rated power | 1000W | 2000W | 3000W | 4000W | 5000W | 6000W |
| Battery | ||||||
| Rated voltage | DC12V/24V | DC24V/48V | DC48V/96V | |||
| Charging voltage | 13.5V(±2%） | 27.5(±2%） | 54V(±2%） | 106V(±2%） | ||
| Input | ||||||
| Grid input voltage | 165-260VAC | |||||
| Grid input frequency | 45-50Hz | |||||
| Solar input voltage | 12V/24V（18-100VDC）48V（60-180VDC） | |||||
| Solar input current | 20A-60A | |||||
| Output | ||||||
| Voltage range | 220VAC±5%(Inverter mode） | |||||
| Frequency | 50Hz±1%(Inverter mode） | |||||
| Output waveform | Sine wave | |||||
| Conversion time | ＜10ms（typical load） | |||||
| Efficiency | ＞85%（80%resistive load） | |||||
| Overload | 110-120%/30s；＞160%/300ms | |||||
| Protection function | Over-voltage, low voltage, overload, short circuit, over temperature, etc | |||||
| Operating ambient temperature | 0一40 ℃ | |||||
| Storage ambient temperature | -15 ℃ ~+50 ℃ | |||||
| Working or Storage humidity | 0-90% No frost | |||||
