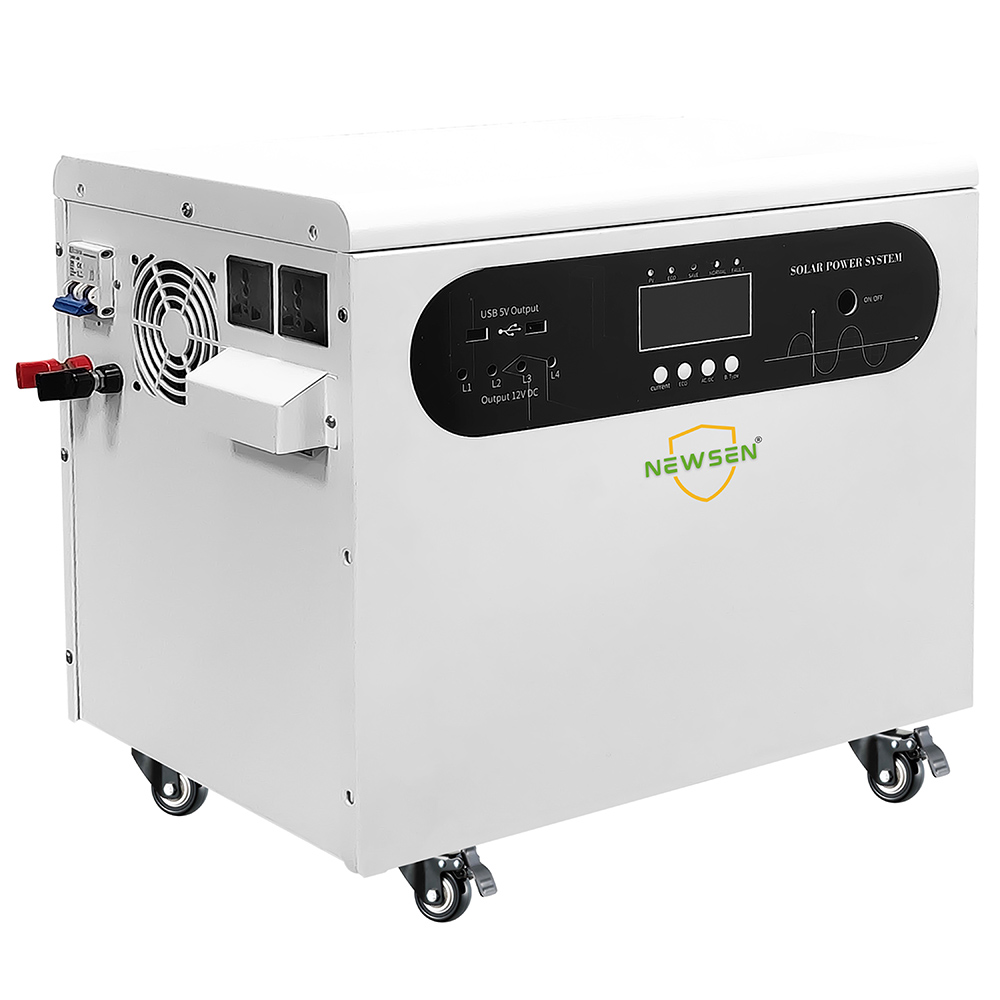

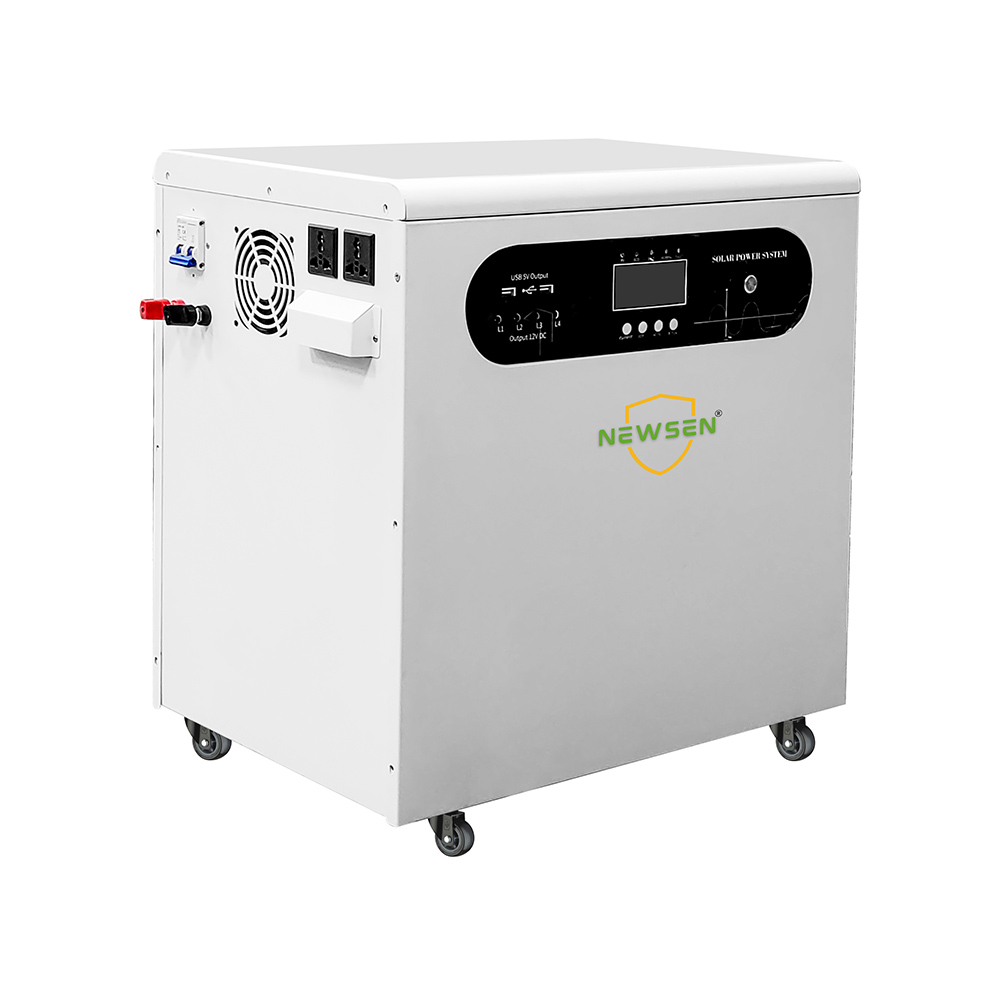

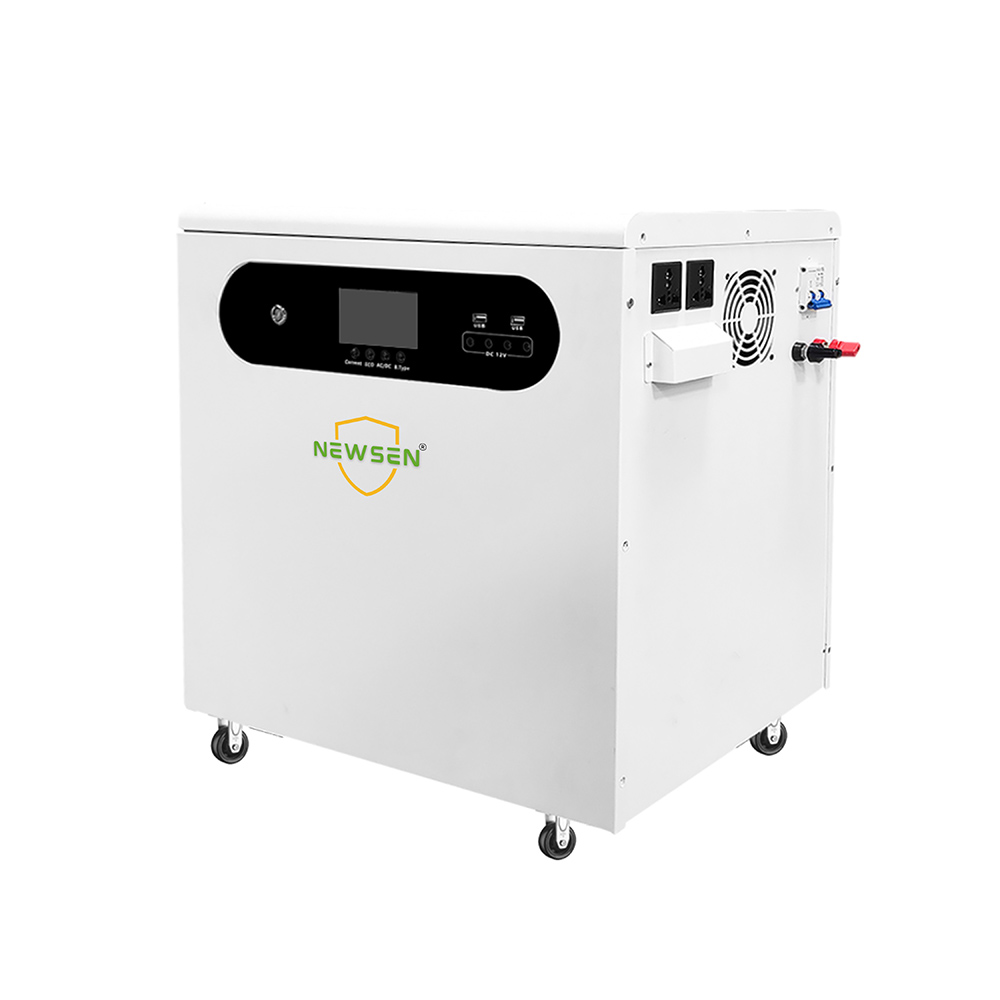

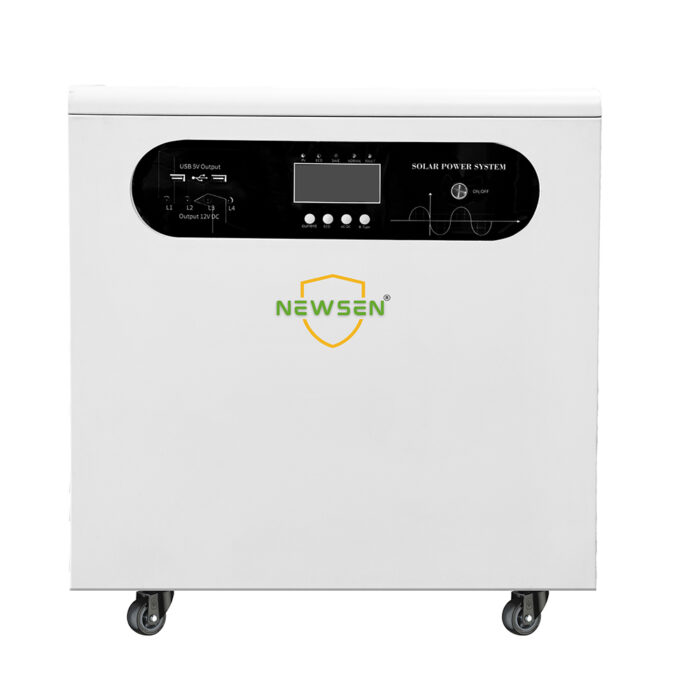

Mobile All-in-one Energy Storage System
Widely used for outdoor or emergency power supply, suitable for temporary power needs such as camping, outdoor work, market stalls, etc.
Real-time protection with overcharging, over discharging, overloading, short-circuit, and over temperature protection functions to safeguard the battery.
Description
Features of Mobile All-in-one Energy Storage System
Applicable scenario
Widely used for outdoor or emergency power supply, suitable for temporary power needs such as camping, outdoor work, market stalls, etc.
Smart BMS
Real-time protection with overcharging, over discharging, overloading, short-circuit, and over temperature protection functions to safeguard the battery.
Multiple output interface
Three-hole socket ×2, USB×2, LED lamp ×2, 12VDC round hole ×4, LCD display ×1, cigarette lighter ×1, EC5×1.
LFP Battery
Made with high-quality lithium iron phosphate batteries, which have a high safety factor, less prone to thermal runaway, and can have a lifespan of up to 10 years with over 3000 cycles.
Specifications of Mobile All-in-one Energy Storage System
| Model | K24160 | K24260 | K48160 |
| Nominal voltage | 25.6V | 25.6V | 51.2V |
| Nominal capacity | 160Ah | 260Ah | 160Ah |
| Rated energy | 4KWh | 6.6KWh | 160Ah |
| Cycle life | ≥3000次 | ||
| Work environment | Temperature: -20°~60°; Humidity: ≤95%; Altitude ≤4000m | ||
| Protection function | Over-voltage, low voltage, overload, short circuit, over temperature, etc. | ||
| Inverter | |||
| Rated power | 3KW | 3KW | 5KW |
| Input voltage | 165VAC-260VAC | ||
| Input frequency | 45Hz-60Hz | ||
| Output voltage | 110/120/220/230/240VAC | ||
| Frequency of output | 50Hz-/60Hz | ||
| Output waveform | Pure Sine Wave | ||
| Protection function | High voltage/overload/over-discharge/over-charge, etc | ||
| Size (mm) | 470×310×390 | 520×370×520 | 520×370×520 |
| Weight (KG) | 51.85 | 81.62 | 90.41 |
